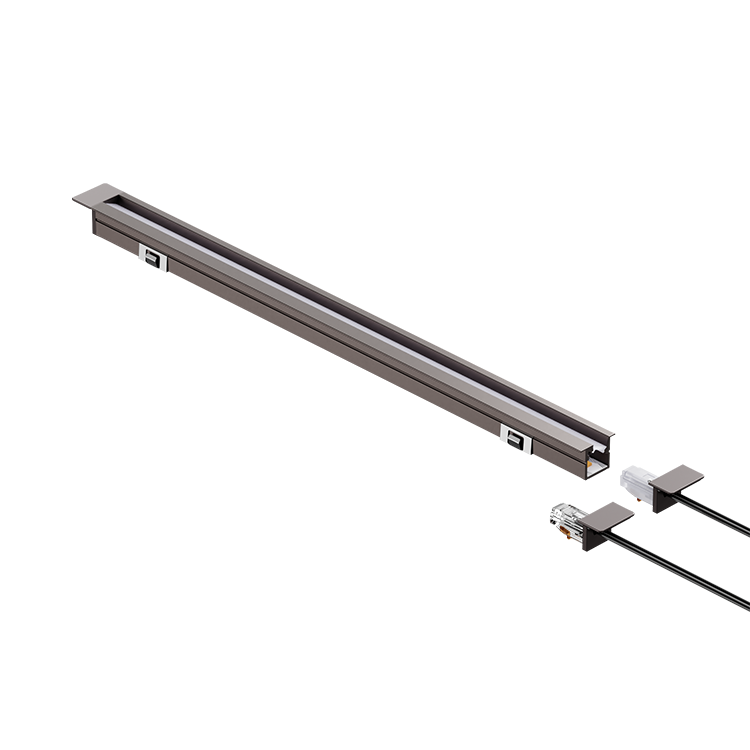

A2Q0G Recessed diagonally illuminated cut-to-length strip light.
Product Description
1. This product supports any cutting, support plug installation does not distinguish between left and right, support two-wire circuit dial code to adjust the color temperature of the lamps and lanterns
3000K/6000K
2. Installation of slots using shrapnel fixed, simple and reliable
3. Length can be customized, suitable for a variety of home decorative lighting occasions
Product Parameter
| Product | Recessed diagonally illuminated cut-to-length strip light |
| Model | A2Q0G |
| Material | PC+Aluminum Alloy |
| Specification Size | 14*10.3mm Profile length = luminaire length-22.5mm |
| Slotting Size | Width10.5mm Depth10mm Slotting Size=Lamp Length-3mm |
| CRI(Ra) | ≥90 |
| Color Temperature | 3000K/4000K/6000K/3000K-6000K Double color |
| Working Voltage | DC12V/24V(CCC certified power supplies are recommended) |
| Power | 5W/7.5W |
| Beads | SMD2219 |
| Input Line Length | 1500mm |
Dimensions and Packaging
Size: (customized size)*14*10.3mm Packing: PE sleeve
Profile Length L=3000mm Max

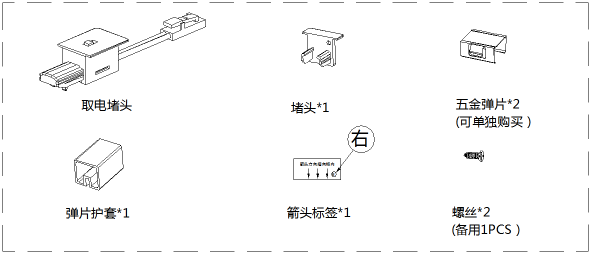

Accessory Set
Electric plug, Plug*1, Hardware Shrapnel*2 (can buy it separately), Shrapnel sheath*1, Arrow label*1, Screw*2(standby 1pcs)
Installation
Step 1: Cutting
1.Cut the profile, according to the cabinet needs, cut the aluminum to the required size, please ensure that the cutting equipment saw blade sharp, after cutting the light strip copper has a residual part, please manually remove to prevent short circuit.
2. Label the wires
Step 2: Assemble the lamps and lanterns, please do not operate with electricity when installing and using the lamps and lanterns.
1. Remove the kit, take out the power plug with a dip switch, this plug can be installed according to the needs of the site installation, you can take power on the left side, you can also take power on the right side, if you plug in the lamps and lanterns are not lit, please toggle the switch on the head of the plug for conversion!
2. Lamps and lanterns plug does not distinguish between left and right, can be assembled in the lamps and lanterns, accessories package with screws, can also be fixed with screws
3.Snap the shrapnel on the back of the profile, and then proceed to the next step of installation.

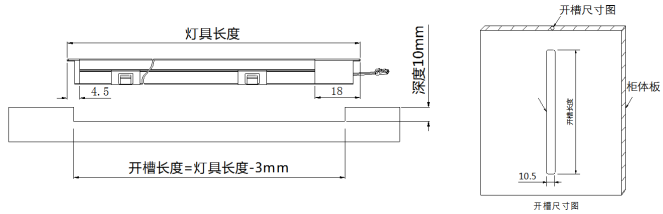

Step 3: Open slots or short slots in the laminate with the following dimensions.
Safety instructions
1. For indoor use only
2. Please check the wire, transformer and all other parts regularly for damage, if any part is damaged, the product should not be used.
3. When installing and using the lamp, please strictly comply with the requirements of this manual to retain the instructions for future use.
4. The light source of this product is a non-replaceable light-emitting diode.
5. Please do not install the lamps and lanterns in the place where water drips.
Maintenance
1. Please use a dry rag to clean, the use of strong detergent is strictly prohibited.
