A2303 Surface-Mounted Triangle Light

A2303 Surface-Mounted Triangle Light

1. Size: 1000*11*12;

2. Voltage(VDC): DC12V;

3. LED type:SMD2835(120pcs/m);

4. CCT(K): WW3000, NW4000, CW6000;

5. Power(W): 14.4W.

Important safety instructions

• for indoor use only
• regularly check the cord, the transformer and all other parts for damage. If any part is damaged the product should not be use.
• Important information! Please follow instruction requirements strictly when install and use these light fixture. Keep these instruction for future use.
• The light source of this product is non-changeable light diodes(LED)
• Do not immerse in water.

Maintenance

• cannot replace the wires, if wire be damaged, please stop use it.
• Use a dry cloth, never a strong cleaning agent.

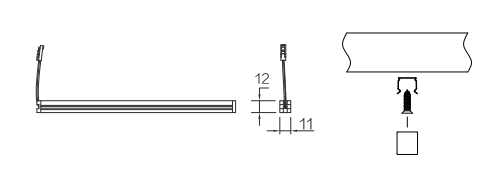

Installation option:

1)Use accessories install on surface

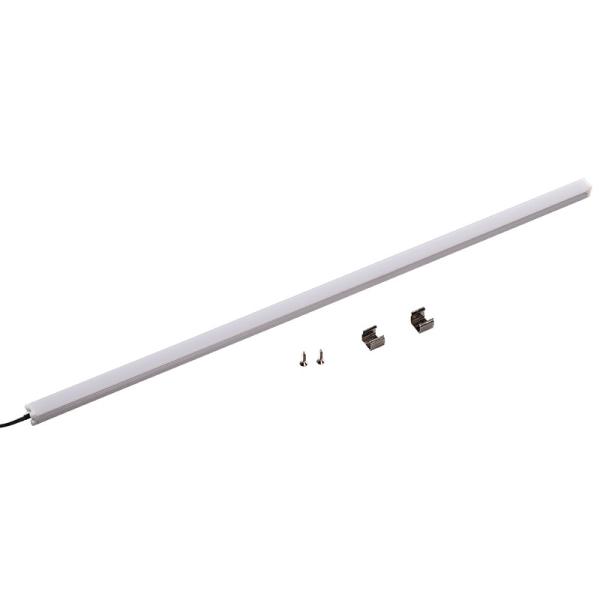

Accessories: screw x2, cover x 2

• open wire hole: please open wire holes on installation position(diameter 8mm)
• use screwdriver fix up screw/cover which need wire hole 100mm position
• put lamp in the cover, put wire through the wire hole, and plug in power source.

2) 3M sticker installation, 3M (220mmx8mm), can follow other length upon request.

• open hole on the installation position (see below image3)
• slit off 3M sticker, put wire through hole. Stick on lamp on installation position(see image4)

A2303 Triangle Light

Surface Mounted Triangle Light

A2303 Surface-Mounted Triangle Light Images
